5G base station solution

In the past ten years, the development of the Internet has formed the connection between 2 billion people in the world; in the next ten years, the development of the Internet of Things will form the connection between 100 billion things in the world. With the further deepening and maturity of information technology, 5G business will inevitably extend to a series of applications such as the Internet of Vehicles, Internet of Things, driverless, wearable devices, etc., to realize the communication between people and vehicles, vehicles and vehicles, and things and things. , to build a society where everything is interconnected.

Program introduction

The 5G base station has an integrated type and a split type. The split is a coverage system composed of a baseband main unit (BBU) and a remote radio unit (RRU). One baseband can carry 3-6 RRUs. The block diagram only shows that 4 channels of transceivers form a small unit (driven by a transceiver), and there are 16 such small units in total.

Program Features

1. 64 transmit channels, the maximum power of each output port is 35dBm, and the efficiency is greater than 39%

2. 64 access channels

3. 128 antennas for beam diversity

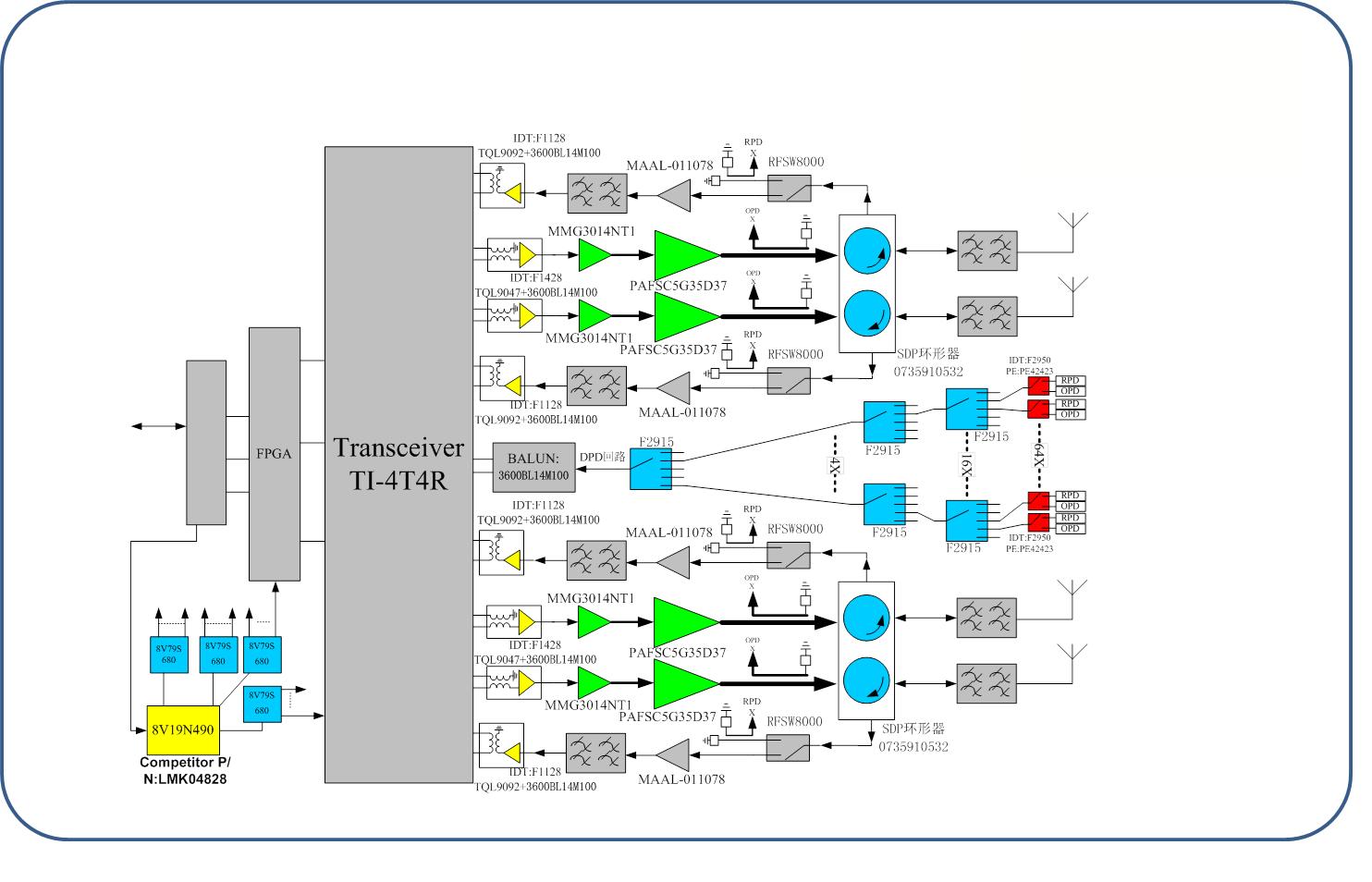

Scheme block diagram

Application field

base station

Typical application scenarios

Technical support service

Sample or set
