i.MX6-based car navigation and entertainment system solution

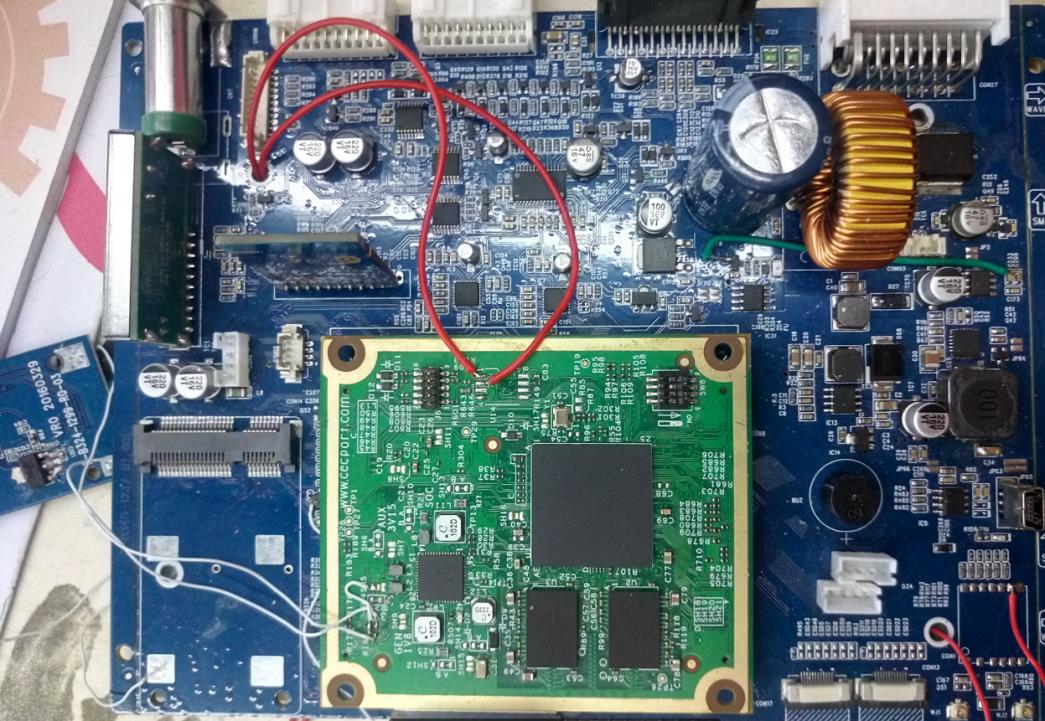

The solution is based on the multi-core Cortex-A9 i.MX6 embedded development platform. According to different applications, single-core, dual-core and quad-core product solutions are provided for customers to choose from. Adopt core board + backplane structure. The core board has onboard 1GB DDR3 SDRAM and 8GB eMMC Flash to support dual sound cards. GPS/BD is supported. 8-inch TFT screen with LVDS interface. Capacitive touch screen. USB/SD. Wide temperature range from -40°C to +85°C.

Program Features

The single-core, dual-core, and quad-core implementations of the IMX6 series are hardware scalable, and software and pins are fully compatible, enabling engineers to develop differentiated products more quickly.

Support full sequence Android OS.

Support fast startup

Support fast reversing

Support reversing dynamic track

Support dual sound card

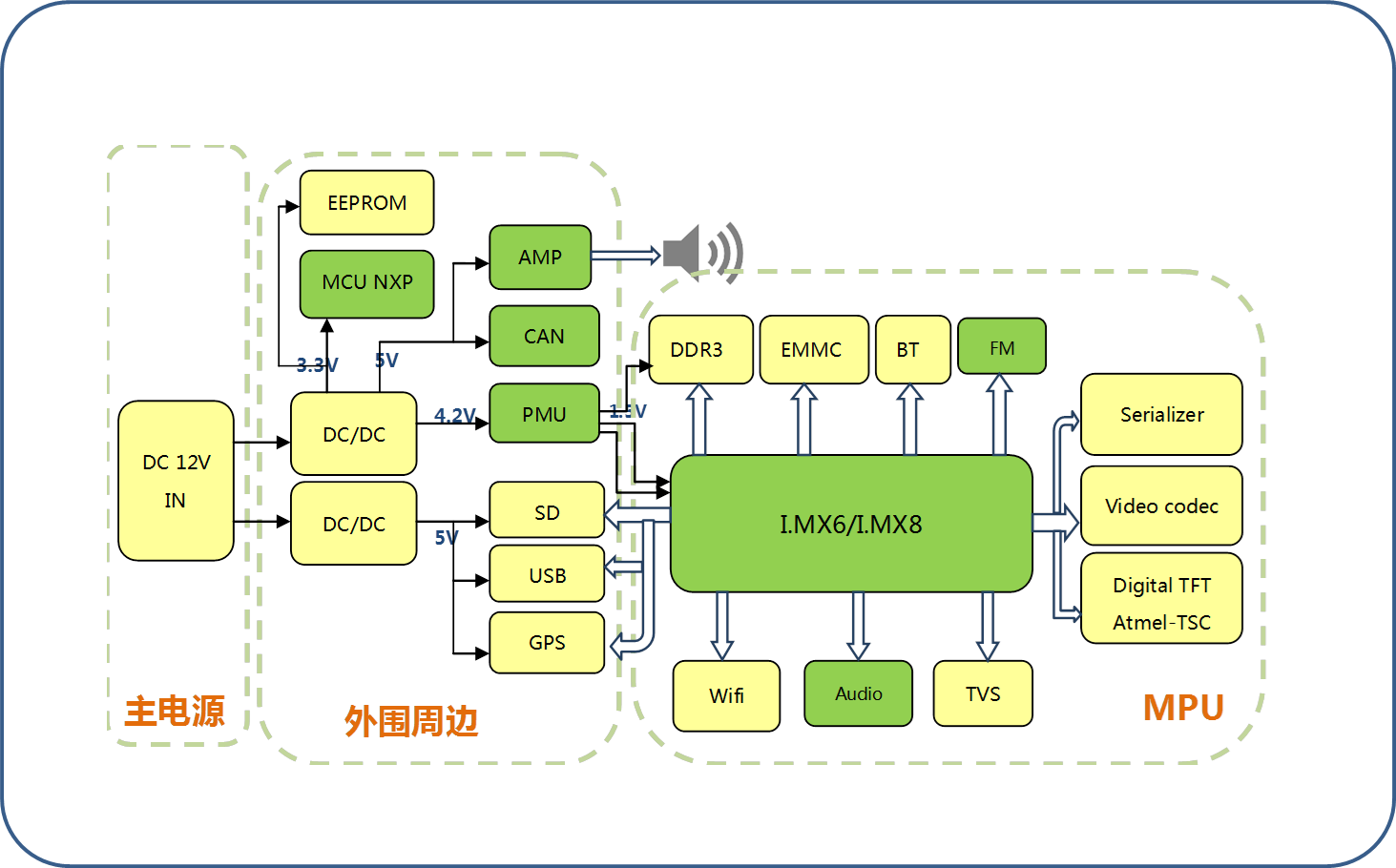

Scheme block diagram

Application field

automotive electronics in-vehicle infotainment

Typical application scenarios

Technical support service

Training on the use of i.MX development software tools;

Hardware design guide with PCB reference design;

Software design guidance, with Demo reference program;

Technical support in development and debugging;

Provide samples and programmers
