HD 360 Surround View Integrated ADAS System

The system consists of 4 ultra-wide-angle high-definition cameras installed on the front, rear, left, and right of the vehicle. The cameras collect images around the vehicle, and are processed by seamless stitching technology and a series of intelligent algorithms to finally form a panoramic bird's-eye view around the vehicle and display it on the screen. , perfectly presents the real overall scene, and intuitively reflects the location and surrounding conditions of the vehicle. The solution includes two major ADAS functions, LDW and BSD, which can solve the problems of lateral displacement and lane change during vehicle driving.

1. Program introduction:

Based on Maxim's MAX9286 all-digital interface chip, providing up to 1.5Gbps bandwidth

The main processor is based on the i.MX6 chip

Provide 4-channel 720P high-definition video input, LVDS/ Parallel RGB high-definition video output

LVDS signals are transmitted over coaxial cables

2D/3D panoramic surround view integrated ADAS function, super cost-effective

2. Main functional parameters: The system functions include 2D panorama/3D panorama, dynamic reversing track, four-way driving record, lane departure warning (LDW) and blind spot monitoring (BSD).

3. The core advantages of the program:

Image algorithm processing

High integration: one system realizes six functions

4. Solution application market segments:

Car Entertainment Navigation Factory

Virtual Dashboard Factory

Camera manufacturer

Qualified OEM

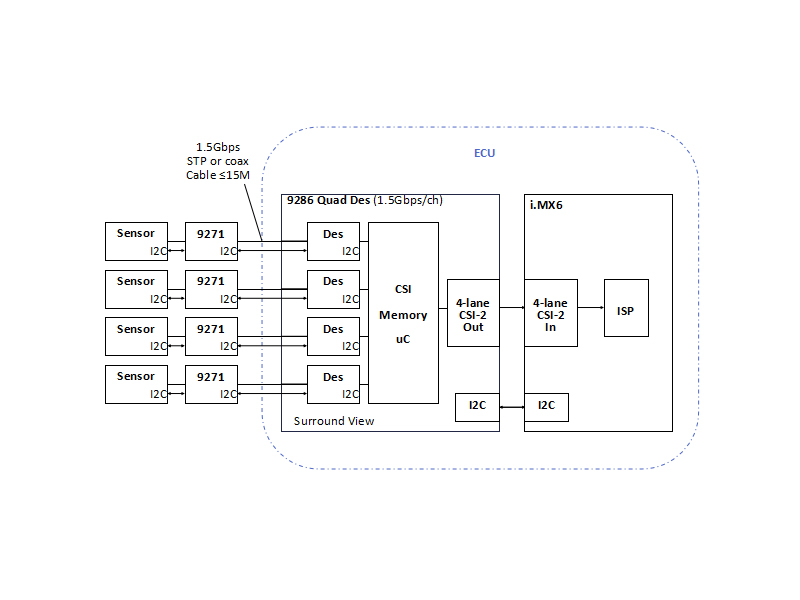

block diagram:
