Wireless remote transmission centralized meter reading solution

Remote centralized meter reading has gradually become a more satisfactory, technically reliable and leading meter reading method for gas companies.

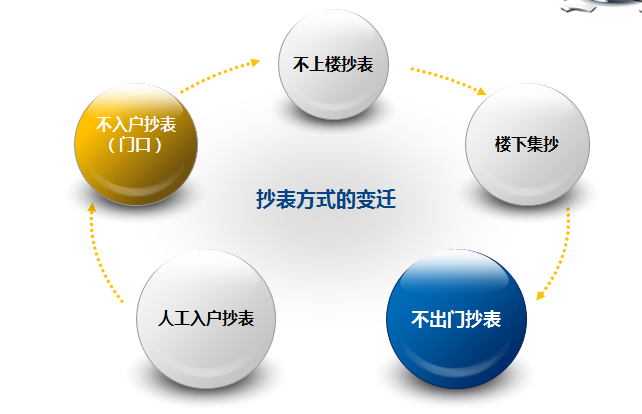

Changes in meter reading methods

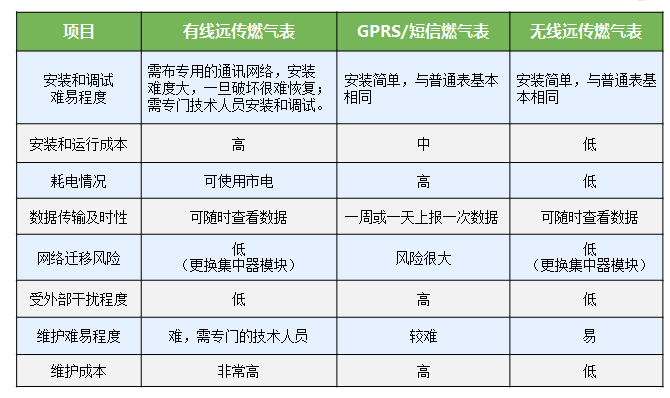

Comparison of advantages and disadvantages of various remote meter reading solutions

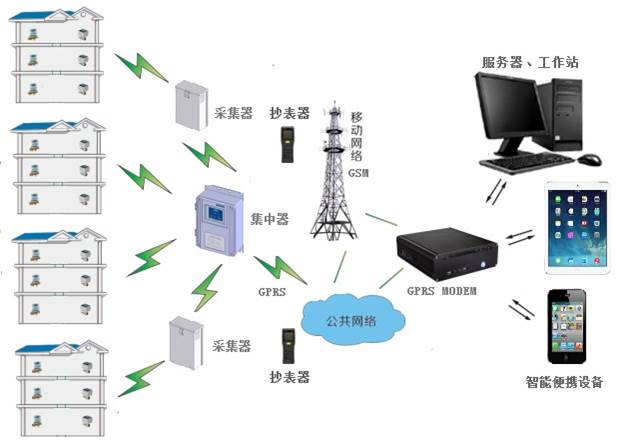

Centralized meter reading system block diagram

Wireless remote gas meter communication function

1. Ultra-long communication distance:

     A. Using the latest spread spectrum technology SX1278 wireless chip, the coverage in sparse environment can reach 8 kilometers, and it can also reach 2 kilometers in dense environment;

     B. The actual receiving sensitivity reaches -129.5dBm;

2. Wireless routing function:

     A. With two-way communication function, it can undertake the task of forwarding data;

     B. The maximum routing level is 8, and the signal coverage is wide;

     C. Multiple backup paths to automatically balance the power consumption of intermediate nodes;

3. Wireless automatic networking function:

    A. Automatically search for surrounding nodes without manual intervention, and the system debugging is simple;

    B. The networking time is short;

    C. When the route in the table fails, the node autonomously initiates the re-entry process;

4. Real group copy function can be realized:

    A. The entire network is awakened in a unified manner to realize the real meaning of group copying;

    B. Precise clock control to ensure orderly return of data;

    C. Reasonable TDMA (Time Division Multiple Access) backoff algorithm to reduce the probability of data collision;

5. Simplified installation of centralized meter reading equipment:

    A. The number of concentrators and repeaters is greatly reduced (according to empirical estimates, for a community of 2,000 households, only one concentrator can be installed to cover the entire community);

    B. The requirements for the installation location of the concentrator are reduced;

    C. The debugging of the system is relatively simple.
