LoRaWAN IoT

Standard LoRaWAN architecture, star network, wireless module, base station gateway, server, remote upgrade.

【Program Features】

*Standard LoRaWAN protocol, star network;

* Operating frequency range 410-510M, 862-1020MHz (customized);

*Maximum receiving sensitivity -142dBm;

*Module UART interface, TTL level;

*Base station power supply: DC 12V or POE 48 V;

*The base station supports Ethernet or 4G uplink;

*The basic version of the base station has 8 frequency points, which can support up to 32 frequency points and 196 channels;

*The server contains NS, AS, and CSDemo;

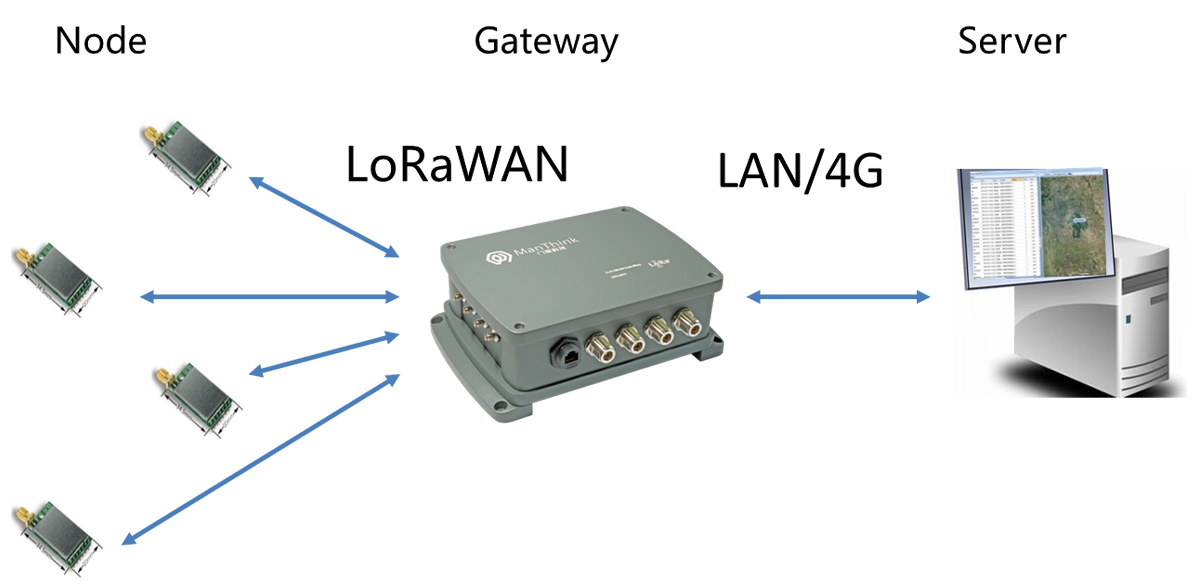

【Plan structure】

【Application field】

* Wireless smart water, gas, electricity, heat metering instruments;

* Traffic lights, geomagnetic, smart street lights, fire alarms, temperature and humidity toxic smoke monitors;

* Agricultural irrigation devices, water conservancy and hydrometeorological monitors, animal husbandry monitoring;

* Factory control devices, smart buildings and energy efficiency monitoring devices;

* Tracking and locating of vulnerable groups, valuables, pets;

*Scenic spots and cultural relics protection, emergency communication devices;

【Typical application scenarios】

* Residential utilities, electricity, water, gas, heat and air quality monitoring;

*Urban infrastructure, pipe network monitoring;

*Intelligent traffic management;

*Industrial park plant warehousing and intelligent building energy efficiency control;

*Agricultural breeding and outdoor monitoring;

* Personnel and item positioning;

【Technical support service】

*Server, Gateway and Module configuration software, visual operation;

*LoRaWAN R&D kit, including Server, Gateway and Node;

*LoRaWAN application board with reference design, GPS, temperature and pressure sensor;

*Introduction to the test (Q&A)
